Samtec Inc. ICA-308-SGG (1 Tube)
- Model Number
- ICA-308-SGG
- Manufacturer
- Samtec Inc.
- Datasheet
- ICA-308-SGG PDF
- Description

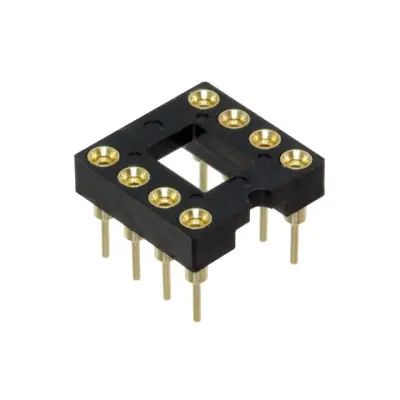

- CONN IC DIP SOCKET 8POS GOLD
In Stock : 954
USD $2.92
Payments
Shipping
Product Details
- Manufacturer
- Samtec Inc.
- Series
- ICA
- Packaging
- Tube
- Product Status
- Active
- Type
- DIP, 0.3" (7.62mm) Row Spacing
- Number of Positions or Pins (Grid)
- 8 (2 x 4)
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Material - Mating
- Beryllium Copper
- Mounting Type
- Through Hole
- Features
- Open Frame
- Termination
- Solder
- Pitch - Post
- 0.100" (2.54mm)
- Contact Finish - Post
- Gold
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Contact Material - Post
- Brass
- Housing Material
- Polyester, Glass Filled
- Operating Temperature
- -55°C ~ 125°C
- Termination Post Length
- 0.125" (3.18mm)
- Material Flammability Rating
- UL94 V-0
- Current Rating (Amps)
- 1 A
- Contact Resistance
- 10mOhm
- Base Product Number
- ICA-308
