Wurth Elektronik 686108148922 In Stock Bulk sales (1 piece or more)
- Model Number
- 686108148922
- Manufacturer
- Wurth Elektronik
- Datasheet
- 686108148922 PDF
- Description

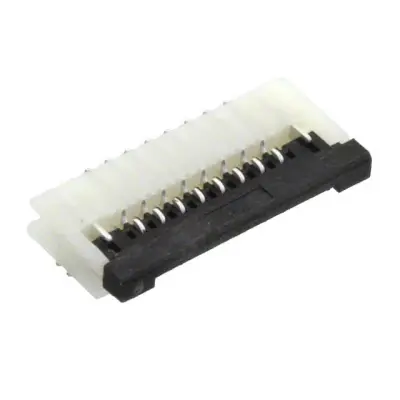

- CONN FFC FPC BOTTOM 8POS 1MM R/A
In Stock : 9065
USD $0.83
Payments
Shipping
Product Details
- Manufacturer
- Würth Elektronik
- Series
- WR-FPC
- Packaging
- Cut Tape
- Product Status
- Active
- Flat Flex Type
- FFC, FPC
- Mounting Type
- Surface Mount, Right Angle
- Connector/Contact Type
- Contacts, Bottom
- Number of Positions
- 8
- Pitch
- 0.039" (1.00mm)
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.087" (2.20mm)
- Locking Feature
- Flip Lock
- Cable End Type
- Straight
- Contact Material
- Phosphor Bronze
- Contact Finish
- Tin
- Housing Material
- Polyamide (PA6T), Nylon 6T
- Actuator Material
- Polyamide (PA6T), Nylon 6T
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating
- 100V
- Operating Temperature
- -40°C ~ 105°C
- Material Flammability Rating
- UL94 V-0
- Current Rating (Amps)
- 1A
- Contact Finish Thickness
- 120.0µin (3.05µm)
- Housing Color
- Ivory
- Actuator Color
- Black
- Mating Cycles
- 20
