Texas Instruments CSD86356Q5D (2500 per Tape & Reel Full Tape & Reel)
- Model Number
- CSD86356Q5D
- Manufacturer
- Texas Instruments
- Datasheet
- CSD86356Q5D PDF
- Description
- 25V POWERBLOCK N CH MOSFET
Products need to verify price and stock, please send inquiry or contact sales
Email: sales@lzchips.com
Product Details
- Manufacturer
- Texas Instruments
- Series
- NexFET™
- Packaging
- Tape & Reel
- Product Status
- Active
- Technology
- MOSFET (Metal Oxide)
- Configuration
- 2 N-Channel (Half Bridge)
- FET Feature
- Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss)
- 25V
- Current - Continuous Drain (Id) @ 25°C
- 40A (Ta)
- Rds On (Max) @ Id, Vgs
- 4.5mOhm @ 20A, 5V, 0.8mOhm @ 20A, 5V
- Vgs(th) (Max) @ Id
- 1.85V @ 250µA, 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs
- 7.9nC @ 4.5V, 19.3nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds
- 1040pF @ 12.5V, 2510pF @ 12.5V
- Power - Max
- 12W (Ta)
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Mounting Type
- Surface Mount

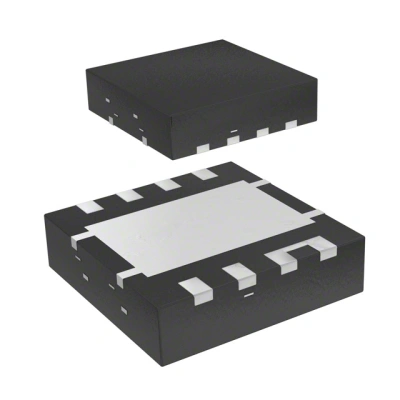

- Package / Case
- 8-PowerTDFN
- Supplier Device Package
- 8-VSON-CLIP (5x6)
- Base Product Number
- CSD86356
