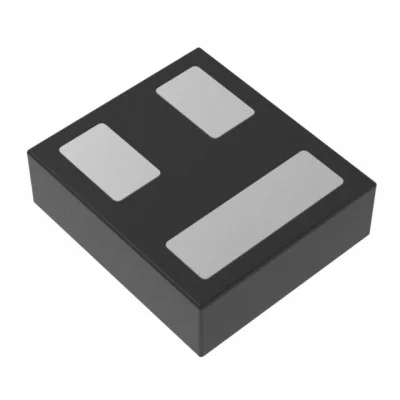

Texas Instruments CSD25501F3T (250 per Tape & Reel Full Tape & Reel)
- Model Number
- CSD25501F3T
- Manufacturer
- Texas Instruments
- Datasheet
- CSD25501F3T PDF
- Description
- MOSFET P-CH 20V 3.6A 3LGA
In Stock : 12923
USD $105.70
Payments
Shipping
Product Details
- Manufacturer
- Texas Instruments
- Series
- FemtoFET™
- Packaging
- Tape & Reel
- Product Status
- Active
- FET Type
- P-Channel
- Technology
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)
- 20 V
- Current - Continuous Drain (Id) @ 25°C
- 3.6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)
- 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs
- 76mOhm @ 400mA, 4.5V
- Vgs(th) (Max) @ Id
- 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs
- 1.33 nC @ 4.5 V
- Vgs (Max)
- -20V
- Input Capacitance (Ciss) (Max) @ Vds
- 385 pF @ 10 V
- FET Feature
- -
- Power Dissipation (Max)
- 500mW (Ta)
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Mounting Type
- Surface Mount
- Supplier Device Package
- 3-LGA (0.73x0.64)
- Package / Case
- 3-XFLGA
- Base Product Number
- CSD25501F3
