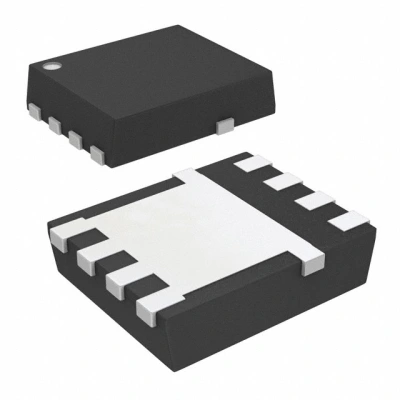

Texas Instruments CSD18540Q5B In Stock Bulk sales (1 piece or more)
- Model Number
- CSD18540Q5B
- Manufacturer
- Texas Instruments
- Datasheet
- CSD18540Q5B PDF
- Description
- MOSFET N-CH 60V 100A 8VSON
In Stock : 15556
USD $2.02
Payments
Shipping
Product Details
- Manufacturer
- Texas Instruments
- Series
- NexFET™
- Packaging
- Cut Tape
- Product Status
- Active
- FET Type
- N-Channel
- Technology
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)
- 60 V
- Current - Continuous Drain (Id) @ 25°C
- 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Rds On (Max) @ Id, Vgs
- 2.2mOhm @ 28A, 10V
- Vgs(th) (Max) @ Id
- 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs
- 53 nC @ 10 V
- Vgs (Max)
- ±20V
- Input Capacitance (Ciss) (Max) @ Vds
- 4230 pF @ 30 V
- FET Feature
- -
- Power Dissipation (Max)
- 3.1W (Ta), 195W (Tc)
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Mounting Type
- Surface Mount
- Supplier Device Package
- 8-VSON-CLIP (5x6)
- Package / Case
- 8-PowerTDFN
- Base Product Number
- CSD18540
