Sunon Fans PMD4807PTB1-A.(2).U.GN (30 per Box Full Box)
- Model Number
- PMD4807PTB1-A.(2).U.GN
- Manufacturer
- Sunon Fans
- Datasheet
- PMD4807PTB1-A.(2).U.GN PDF
- Description
- FAN AXIAL 70X25MM 48VDC WIRE
Products need to verify price and stock, please send inquiry or contact sales
Email: sales@lzchips.com
Product Details
- Manufacturer
- Sunon Fans
- Series
- PMD
- Packaging
- Box
- Product Status
- Active
- Voltage - Rated
- 48VDC

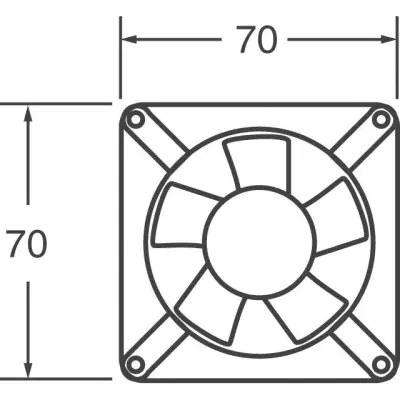

- Size / Dimension
- Square - 70mm L x 70mm H
- Width
- 25.00mm
- Air Flow
- 49.0 CFM (1.37m³/min)
- Static Pressure
- 0.360 in H2O (89.7 Pa)
- Bearing Type
- Ball
- Fan Type
- Tubeaxial
- Features
- -
- Noise
- 45.0dB(A)
- Power (Watts)
- 5.8 W
- RPM
- 5100 RPM
- Termination
- 2 Wire Leads
- Ingress Protection
- -
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Approval Agency
- CE, CUR, TUV, UL
- Weight
- 0.199 lb (90.26 g)
- Current Rating (Amps)
- 0.120A
- Voltage Range
- 24 ~ 56VDC
- Material - Frame
- -
- Material - Blade
- -
- Lifetime @ Temp.
- -
- Base Product Number
- PMD4807
