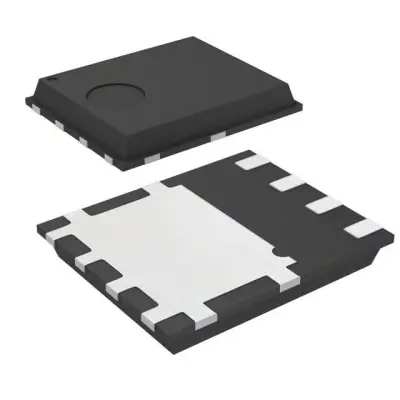

STMicroelectronics STL56N3LLH5 (3000 per Tape & Reel Full Tape & Reel)
- Model Number
- STL56N3LLH5
- Manufacturer
- STMicroelectronics
- Datasheet
- STL56N3LLH5 PDF
- Description
- MOSFET N-CH 30V 56A POWERFLAT
Products need to verify price and stock, please send inquiry or contact sales
Email: sales@lzchips.com
Product Details
- Manufacturer
- STMicroelectronics
- Series
- STripFET™ V
- Packaging
- Tape & Reel
- Product Status
- Active
- FET Type
- N-Channel
- Technology
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss)
- 30 V
- Current - Continuous Drain (Id) @ 25°C
- 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
- Rds On (Max) @ Id, Vgs
- 9mOhm @ 7.5A, 10V
- Vgs(th) (Max) @ Id
- 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs
- 6.5 nC @ 4.5 V
- Vgs (Max)
- +22V, -20V
- Input Capacitance (Ciss) (Max) @ Vds
- 950 pF @ 25 V
- FET Feature
- -
- Power Dissipation (Max)
- 62.5W (Tc)
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Mounting Type
- Surface Mount
- Supplier Device Package
- PowerFlat™ (5x6)
- Package / Case
- 8-PowerVDFN
- Base Product Number
- STL56
