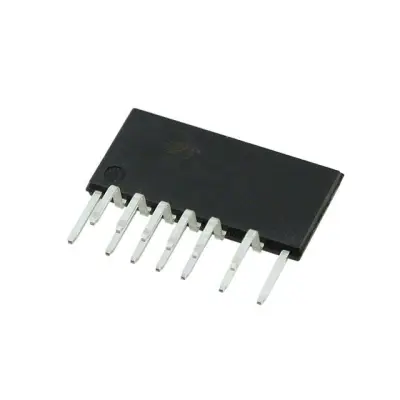

Power Integrations LCS700HG (1 Tube)
- Model Number
- LCS700HG
- Manufacturer
- Power Integrations
- Datasheet
- LCS700HG PDF
- Description
- IC HALF BRIDGE DRIVER ESIP16J
In Stock : 359
USD $2.99
Payments
Shipping
Product Details
- Manufacturer
- Power Integrations
- Series
- HiperLCS™
- Packaging
- Tube
- Product Status
- Active
- Output Configuration
- Half Bridge
- Applications
- General Purpose
- Interface
- On/Off
- Load Type
- Inductive
- Technology
- Power MOSFET
- Rds On (Typ)
- 1.53Ohm
- Current - Output / Channel
- -
- Current - Peak Output
- 5.2A
- Voltage - Supply
- 11.4V ~ 15V
- Voltage - Load
- 11.4V ~ 15V
- Operating Temperature
- -40°C ~ 150°C (TJ)
- Features
- Auto Restart, Slew Rate Controlled
- Fault Protection
- Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
- Mounting Type
- Through Hole
- Package / Case
- 16-SSIP, 13 Leads, Exposed Pad, Formed Leads
- Supplier Device Package
- eSIP-16J
- Base Product Number
- LCS700
