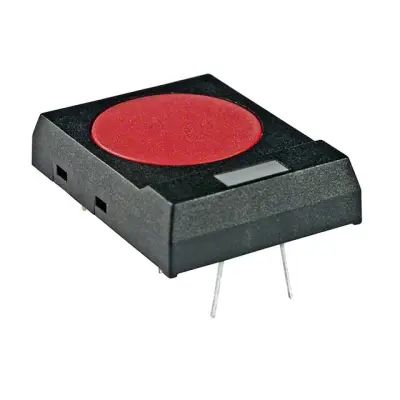

NKK Switches JF15RP2CC (1 Tray)
- Model Number
- JF15RP2CC
- Manufacturer
- NKK Switches
- Datasheet
- JF15RP2CC PDF
- Description
- SWITCH TACTILE SPST-NO 0.05A 24V
In Stock : 9
USD $3.81
Payments
Shipping
Product Details
- Manufacturer
- NKK Switches
- Series
- JF
- Packaging
- Tray
- Product Status
- Active
- Circuit
- SPST-NO
- Switch Function
- Off-Mom
- Contact Rating @ Voltage
- 0.05A @ 24VDC
- Actuator Type
- Round Button
- Mounting Type
- Through Hole
- Actuator Height off PCB, Vertical
- 5.08mm
- Actuator Length, Right Angle
- -
- Actuator Orientation
- Top Actuated
- Termination Style
- PC Pin
- Outline
- 22.80mm x 17.70mm
- Illumination
- Illuminated
- Illumination Type, Color
- LED, Red
- Illumination Voltage (Nominal)
- 2 VDC
- Operating Force
- 300gf
- Ingress Protection
- -
- Features
- Process Sealed
- Operating Temperature
- -25°C ~ 70°C
- Actuator Material
- Polyamide (PA), Nylon
- Switch Travel
- 0.40mm
- Mechanical Life
- 500,000 Cycles
- Base Product Number
- JF15RP2C
