Molex 5052782433 In Stock Bulk sales (1 piece or more)
- Model Number
- 5052782433
- Manufacturer
- Molex
- Datasheet
- 5052782433 PDF
- Description

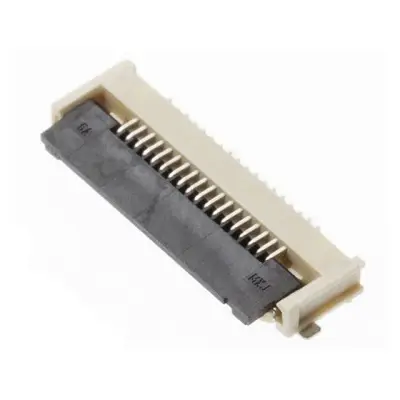

- CONN FFC BOTTOM 24POS 0.5MM R/A
In Stock : 821
USD $0.69
Payments
Shipping
Product Details
- Manufacturer
- Molex
- Series
- Easy-On FS19 505278
- Packaging
- Cut Tape
- Product Status
- Active
- Flat Flex Type
- FFC, FPC
- Mounting Type
- Surface Mount, Right Angle
- Connector/Contact Type
- Contacts, Bottom
- Number of Positions
- 24
- Pitch
- 0.020" (0.50mm)
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.075" (1.90mm)
- Locking Feature
- Flip Lock
- Cable End Type
- Tabbed, Tapered
- Contact Material
- Phosphor Bronze
- Contact Finish
- Tin
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Features
- Solder Retention
- Voltage Rating
- 50V
- Operating Temperature
- -40°C ~ 85°C
- Material Flammability Rating
- UL94 V-0
- Current Rating (Amps)
- 0.5A
- Contact Finish Thickness
- 39.4µin (1.00µm)
- Housing Color
- Beige
- Actuator Color
- Black
- Mating Cycles
- 25
- Base Product Number
- 505278
