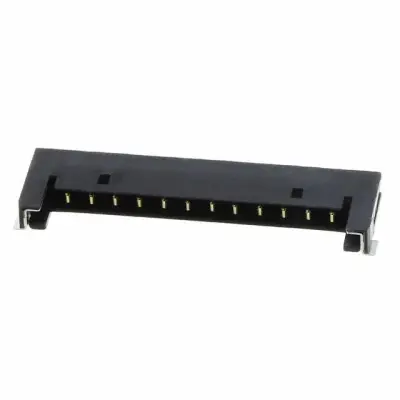

Molex 5040501291 (2700 per Tape & Reel Full Tape & Reel)
- Model Number
- 5040501291
- Manufacturer
- Molex
- Datasheet
- 5040501291 PDF
- Description
- CONN HEADER SMD R/A 12POS 1.5MM
In Stock : 2860
USD $2231.71
Payments
Shipping
Product Details
- Manufacturer
- Molex
- Series
- Pico-Lock 504050
- Packaging
- Tape & Reel
- Product Status
- Active
- Connector Type
- Header
- Contact Type
- Male Blade
- Pitch - Mating
- 0.059" (1.50mm)
- Number of Positions
- 12
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Surface Mount, Right Angle
- Termination
- Solder
- Fastening Type
- Detent Lock
- Contact Length - Mating
- -
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- 0.079" (2.00mm)
- Contact Shape
- Rectangular
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 3.94µin (0.100µm)
- Contact Finish - Post
- Gold
- Contact Material
- Copper Alloy
- Insulation Material
- Polyamide (PA), Nylon
- Features
- Solder Retention
- Operating Temperature
- -40°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- Varies by Wire Gauge
- Voltage Rating
- 150V
- Mated Stacking Heights
- -
- Contact Finish Thickness - Post
- -
- Applications
- Automotive, General Purpose, Industrial, Lighting, Telecommunications
- Base Product Number
- 504050
