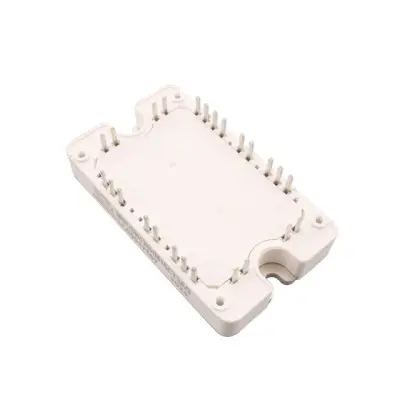

Microchip Technology MSCSM120HM16CT3AG (1 Tube)
- Model Number
- MSCSM120HM16CT3AG
- Manufacturer
- Microchip Technology
- Datasheet
- MSCSM120HM16CT3AG PDF
- Description
- PM-MOSFET-SIC-SBD~-SP3F
Products need to verify price and stock, please send inquiry or contact sales
Email: sales@lzchips.com
Product Details
- Manufacturer
- Microchip Technology
- Series
- -
- Packaging
- Tube
- Product Status
- Active
- Technology
- Silicon Carbide (SiC)
- Configuration
- 4 N-Channel
- FET Feature
- -
- Drain to Source Voltage (Vdss)
- 1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C
- 173A (Tc)
- Rds On (Max) @ Id, Vgs
- 16mOhm @ 80A, 20V
- Vgs(th) (Max) @ Id
- 2.8V @ 2mA
- Gate Charge (Qg) (Max) @ Vgs
- 464nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds
- 6040pF @ 1000V
- Power - Max
- 745W (Tc)
- Operating Temperature
- -40°C ~ 175°C (TJ)
- Mounting Type
- Chassis Mount
- Package / Case
- Module
- Supplier Device Package
- SP3F
- Base Product Number
- MSCSM120
