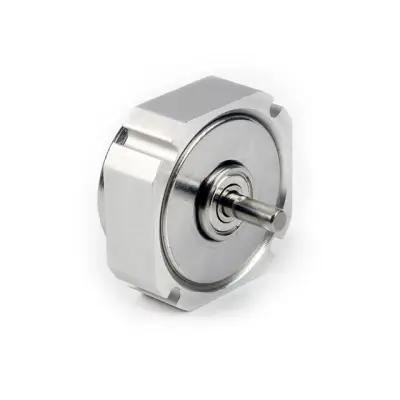

Lin Engineering WO-4109R-05 (1 Tray)
- Model Number
- WO-4109R-05
- Manufacturer
- Lin Engineering
- Datasheet
- WO-4109R-05 PDF
- Description
- STEPPER MOTOR
Products need to verify price and stock, please send inquiry or contact sales
Email: sales@lzchips.com
Product Details
- Manufacturer
- Lin Engineering
- Series
- -
- Packaging
- Tray
- Product Status
- Active
- Type
- -
- Coil Type
- Bipolar
- Voltage - Rated
- 24VDC
- Current Rating (Amps)
- 800 mA
- Steps per Revolution
- 400
- Step Angle
- 0.9°
- Accuracy
- -
- Torque - Holding (oz-in / mNm)
- 22 / 155.4
- Size / Dimension
- Square - 1.654" x 1.654" (42.00mm x 42.00mm)
- NEMA Frame Size
- 17
- Diameter - Shaft
- 0.197" (5.00mm)
- Length - Shaft and Bearing
- 0.591" (15.00mm)
- Mounting Hole Spacing
- 1.220" (31.00mm)
- Termination Style
- Wire Leads
- Operating Temperature
- -20°C ~ 50°C
- Coil Resistance
- 6.5 Ohms
- Features
- Round Shaft
- Rotor Inertia
- 0.483gcm²
- Approval Agency
- -
- Base Product Number
- WO-4109R
