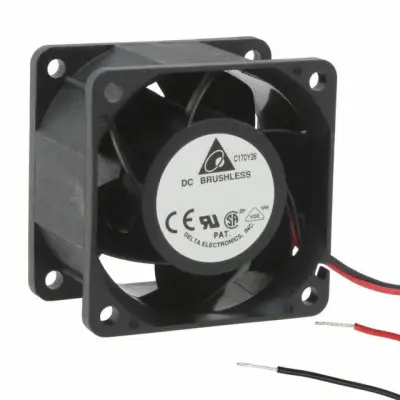

Delta Electronics QFR0612UHE-PM00 (1 Box)
- Model Number
- QFR0612UHE-PM00
- Manufacturer
- Delta Electronics
- Datasheet
- QFR0612UHE-PM00 PDF
- Description
- FAN AXIAL 60X38MM 12VDC WIRE
In Stock : 1494
USD $18.97
Payments
Shipping
Product Details
- Manufacturer
- Delta Electronics
- Series
- QFR
- Packaging
- Box
- Product Status
- Not For New Designs
- Voltage - Rated
- 12VDC
- Size / Dimension
- Square - 60mm L x 60mm H
- Width
- 38.00mm
- Air Flow
- 56.4 CFM (1.58m³/min)
- Static Pressure
- 2.194 in H2O (546.5 Pa)
- Bearing Type
- Ball
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection
- Noise
- 61.5dB(A)
- Power (Watts)
- 13.2 W
- RPM
- 13000 RPM
- Termination
- 2 Wire Leads
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
- Approval Agency
- CE, CSA, UL, VDE
- Weight
- 0.287 lb (130.18 g)
- Current Rating (Amps)
- 1.10A
- Voltage Range
- 7 ~ 13.2VDC
- Material - Frame
- Plastic
- Material - Blade
- Plastic
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Base Product Number
- QFR0612
