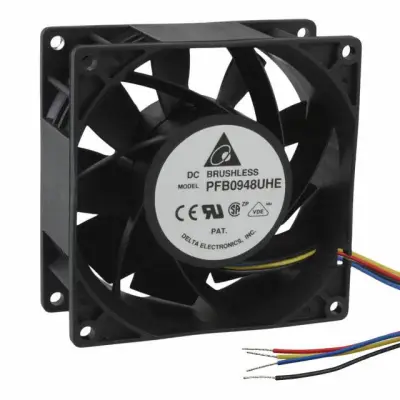

Delta Electronics PFB0948UHE-TP16 (1 Box)
- Model Number
- PFB0948UHE-TP16
- Manufacturer
- Delta Electronics
- Datasheet
- PFB0948UHE-TP16 PDF
- Description
- FAN AXIAL 92X38MM 48VDC WIRE
In Stock : 8609
USD $29.79
Payments
Shipping
Product Details
- Manufacturer
- Delta Electronics
- Series
- PFB
- Packaging
- Box
- Product Status
- Active
- Voltage - Rated
- 48VDC
- Size / Dimension
- Square - 92mm L x 92mm H
- Width
- 38.00mm
- Air Flow
- 153.5 CFM (4.30m³/min)
- Static Pressure
- 1.449 in H2O (360.9 Pa)
- Bearing Type
- Ball
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Noise
- 64.0dB(A)
- Power (Watts)
- 24.96 W
- RPM
- 7000 RPM
- Termination
- 4 Wire Leads
- Ingress Protection
- -
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
- Approval Agency
- CE, CSA, UL, VDE
- Weight
- 0.553 lb (250.84 g)
- Current Rating (Amps)
- 0.520A
- Voltage Range
- 36 ~ 75VDC
- Material - Frame
- Plastic
- Material - Blade
- Plastic
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Base Product Number
- PFB0948
