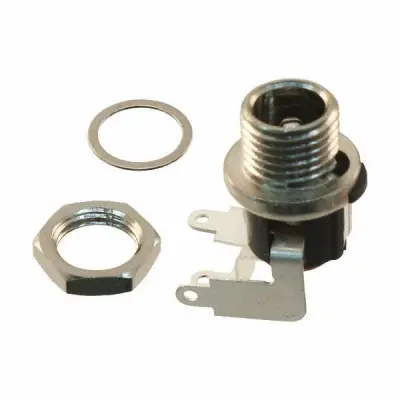

CUI Devices PJ-067A (250 per Bag Full Bag)
- Model Number
- PJ-067A
- Manufacturer
- CUI Devices
- Datasheet
- PJ-067A PDF
- Description
- CONN PWR JACK 2X5.5MM SOLDER
In Stock : 12340
USD $541.80
Payments
Shipping
Product Details
- Manufacturer
- CUI Devices
- Series
- -
- Packaging
- Bag
- Product Status
- Active
- Connector Type
- Jack
- Gender
- Male
- Industry Recognized Mating Diameter
- 2.10mm ID (0.083"), 5.50mm OD (0.217")
- Actual Diameter
- 0.079" (2.00mm ID), 0.224" (5.70mm OD)
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Internal Switch(s)
- Single Switch, Normally Closed
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Mounting Feature
- Bulkhead - Front Side Nut
- Termination
- Solder Eyelet(s)
- Shielding
- Unshielded
- Features
- Mounting Hardware, Thread Lock
- Insulation Color
- -
- Voltage - Rated
- 24VDC
- Current Rating (Amps)
- 5 A
- Mating Length/Depth
- 0.331" (8.40mm)
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Operating Temperature
- -25°C ~ 70°C
- Contact Material - Plating
- Silver
- Body Material
- Brass
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Housing Material
- Polybutylene Terephthalate (PBT)
- Contact Material
- Brass, Phosphor Bronze
- Thread Size
- 5/16"-32
- Body Color
- Black
- Base Product Number
- PJ-067
