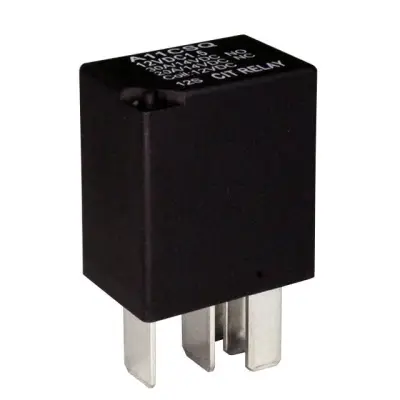

CIT Relay and Switch A11CSQ12VDC1.5 (25 per Tube Full Tube)
- Model Number
- A11CSQ12VDC1.5
- Manufacturer
- CIT Relay and Switch
- Datasheet
- A11CSQ12VDC1.5 PDF
- Description
- RELAY AUTOMOTIVE SPDT 30A 12V
In Stock : 2870
USD $44.82
Payments
Shipping
Product Details
- Manufacturer
- CIT Relay and Switch
- Series
- A1
- Packaging
- Tube
- Product Status
- Active
- Coil Type
- Non Latching
- Coil Current
- 125 mA
- Coil Voltage
- 12VDC
- Contact Form
- SPDT (1 Form C)
- Contact Rating (Current)
- 30 A
- Switching Voltage
- 75VDC - Max
- Must Operate Voltage
- 8.4 VDC
- Must Release Voltage
- 1.2 VDC
- Operate Time
- 10 ms
- Release Time
- 7 ms
- Features
- Sealed - Fully
- Mounting Type
- Socketable
- Termination Style
- Plug In, Quick Connect - 0.187" (4.7mm)
- Operating Temperature
- -40°C ~ 85°C
- Contact Material
- Silver Tin Oxide (AgSnO)
- Coil Power
- 1.5W
- Coil Resistance
- 96 Ohms
- Base Product Number
- A11CSQ
