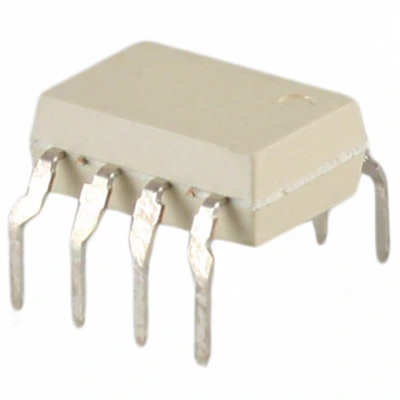

CEL PS9505L1-AX Bulk sales (1 piece or more)
- Model Number
- PS9505L1-AX
- Manufacturer
- CEL
- Datasheet
- PS9505L1-AX PDF
- Description
- OPTOISO 5KV 1CH GATE DRIVER 8DIP
Out of Stock
Products may be out of stock or no longer in production,Please contact our sales for details.
Email: sales@lzchips.com
Product Details
- Manufacturer
- CEL
- Series
- -
- Packaging
- Bulk
- Product Status
- Discontinued at Digi-Key
- Technology
- Optical Coupling
- Number of Channels
- 1
- Voltage - Isolation
- 5000Vrms
- Common Mode Transient Immunity (Min)
- 25kV/µs
- Propagation Delay tpLH / tpHL (Max)
- 250ns, 250ns
- Pulse Width Distortion (Max)
- 100ns
- Rise / Fall Time (Typ)
- 50ns, 50ns
- Current - Output High, Low
- 2A, 2A
- Current - Peak Output
- 2.5A
- Voltage - Forward (Vf) (Typ)
- 1.56V
- Current - DC Forward (If) (Max)
- 25 mA
- Voltage - Output Supply
- 15V ~ 30V
- Operating Temperature
- -40°C ~ 110°C
- Mounting Type
- Through Hole
- Package / Case
- 8-DIP (0.400", 10.16mm)
- Supplier Device Package
- 8-DIP
- Approval Agency
- CSA, SEMKO, UL
