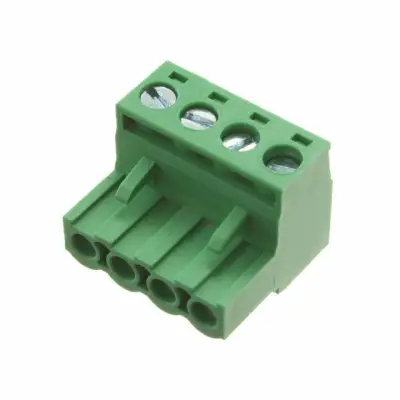

Adam Tech EBHA-04-C In Stock Bulk sales (1 piece or more)
- Model Number
- EBHA-04-C
- Manufacturer
- Adam Tech
- Datasheet
- EBHA-04-C PDF
- Description
- EURO BLOCK 4P
In Stock : 2568
USD $1.12
Payments
Shipping
Product Details
- Manufacturer
- Adam Tech
- Series
- EB
- Packaging
- Bulk
- Product Status
- Active
- Type
- Plug, Female Sockets
- Number of Positions
- 4
- Positions Per Level
- 4
- Number of Levels
- 1
- Pitch
- 0.197" (5.00mm)
- Header Orientation
- -
- Plug Wire Entry
- 180°
- Termination Style
- Screw - Leaf Spring, Wire Guard
- Mounting Type
- Free Hanging (In-Line)
- Current - IEC
- -
- Current - UL
- 15 A
- Voltage - UL
- 300 V
- Wire Gauge or Range - AWG
- 14-28 AWG
- Wire Gauge or Range - mm²
- 2.5mm²
- Color
- Green
- Operating Temperature
- -40°C ~ 105°C
- Contact Mating Finish
- Nickel
- Features
- Retention Latches (Non-Wire Side)
- Material Flammability Rating
- UL94 V-0
- Ingress Protection
- -
- Screw Size
- M3
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Wire Strip Length
- 7-8mm
- Contact Material
- Phosphor Bronze
- Housing Material
- Polyamide (PA66), Nylon 6/6
- Contact Tail Length
- -
- Insulation Height
- 0.594" (15.09mm)
- Base Product Number
- EBHA
