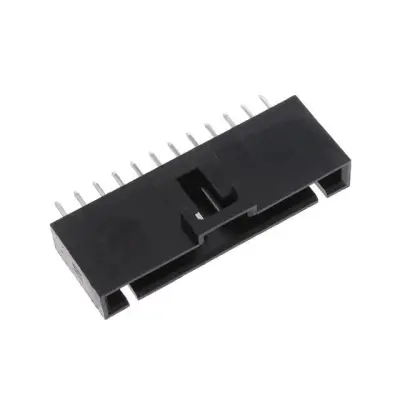

Adam Tech CDR-12-TS (500 per Bag Full Bag)
- Model Number
- CDR-12-TS
- Manufacturer
- Adam Tech
- Datasheet
- CDR-12-TS PDF
- Description
- HEADER VERT TH TIN 12POS .1" SIN
In Stock : 12322
USD $224.10
Payments
Shipping
Product Details
- Manufacturer
- Adam Tech
- Series
- CDR
- Packaging
- Bag
- Product Status
- Active
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.100" (2.54mm)
- Number of Positions
- 12
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Latch Holder
- Contact Length - Mating
- 0.240" (6.10mm)
- Contact Length - Post
- 0.138" (3.50mm)
- Overall Contact Length
- -
- Insulation Height
- 0.469" (11.90mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Material
- Copper Alloy
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Features
- -
- Operating Temperature
- -25°C ~ 85°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 2.5A
- Voltage Rating
- 250VAC/DC
- Mated Stacking Heights
- -
- Contact Finish Thickness - Post
- -
- Applications
- -
- Base Product Number
- CDR
