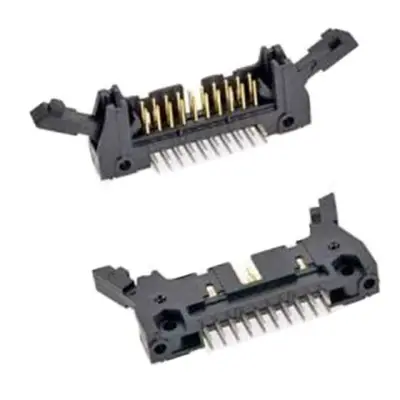

3M N3428-1202RB In Stock Bulk sales (1 piece or more)
- Model Number
- N3428-1202RB
- Manufacturer
- 3M
- Datasheet
- N3428-1202RB PDF
- Description
- CONN HEADER R/A 20POS 2.54MM
In Stock : 545
USD $4.57
Payments
Shipping
Product Details
- Manufacturer
- 3M
- Series
- 3000
- Packaging
- Bulk
- Product Status
- Active
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.100" (2.54mm)
- Number of Positions
- 20
- Number of Rows
- 2
- Row Spacing - Mating
- 0.100" (2.54mm)
- Number of Positions Loaded
- All
- Style
- Board to Board or Cable
- Shrouding
- Shrouded - 3 Wall
- Mounting Type
- Through Hole, Right Angle
- Termination
- Solder
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Contact Length - Mating
- 0.240" (6.10mm)
- Contact Length - Post
- 0.112" (2.84mm)
- Overall Contact Length
- -
- Insulation Height
- 0.310" (7.87mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Tin
- Contact Material
- Copper Alloy
- Insulation Material
- Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features
- Keying Slot, Mounting Flange
- Operating Temperature
- -55°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 1.75A
- Voltage Rating
- -
- Mated Stacking Heights
- -
- Contact Finish Thickness - Post
- 200.0µin (5.08µm)
- Applications
- -
- Base Product Number
- N3428
